Non-Magnetic
This products are ultrasonic motors for high magnetic field environment, such as near MRI system and superconductivity experiment system.
It is possible to build the stable system in the environment more than the magnetic flux density 3[T].
Non-Magnetic Model: Basic Type
USR30-SN
Model Name:USR30-S3N, USR30-S4N
USR30-S4N
-
USR30-SN series is Non-Magnet Model of the Small Ultrasonic Motor.
Because this motor is contained in the case, its solidity is high, and a cable is an attachment-and-detachment type by a connector.
Maximu Torque is 0.1[Nm], Maximum Speed is 250[rpm].
USR30-S3N is the Single shaft Motor, User can save the space of Motor.
USR30-S4N is the Double shaft Motor. User can attach the sensor to USR30-S4N.Click here for catalog and manuals
Click here for Drawing and CAD dataSelectable Driver

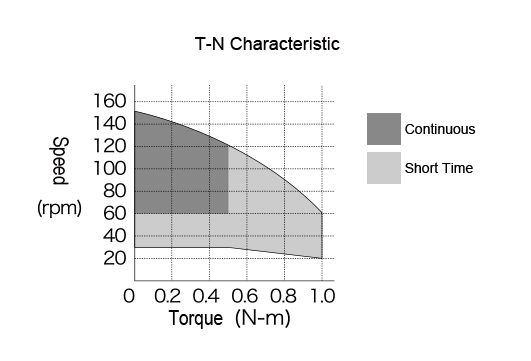

Specification
| Model Name | USR30-S3N | USR30-S4N |
| Drive Frequency | 49 [KHz] 〜 55 [KHz] | |
| Drive Voltage | 110 [Vrms] | |
| Rated Output | 1.0 [W] | |
| Maximum Output | 2.0 [W] (by Maximum Load) | |
| Rated Speed | 200 [rpm] | |
| Maximum Speed | 250 [rpm] | |
| Rated Torque | 0.05 [N･m] (0.5 [Kg･cm]) | |
| Maximum Torque | 0.1 [N･m] (1.0 [Kg･cm]) | |
| Holding Torque | 0.1 [N･m] (1.0 [Kg･cm]) | |
| Response | Less than 1 [ms] ( No-load ) | |
| Direction of Rotation | CW, CCW | |
| Operational Temperature Range | -10 [℃] 〜 +55 [℃] | |
| Temperature Limit | Surface of Stator 70 [℃], Surface of Case 60 [℃] | |
| Operational Humidity Range | 0 〜 +45 [%] (without condensation) | |
| Size | 36×44×30 [mm] | 36×44×44.5 [mm] |
| Weight | 48 [g] | 50 [g] |
| Remarks | Single Shaft | Double Shaft |
USR60-SN
Model Name:USR60-S3N, USR60-S4N
USR60-S3N
-
USR60-SN series is Non-Magnet Model of the Ultrasonic Motor.
Because this motor is contained in the case, its solidity is high, and a cable is an attachment-and-detachment type by a connector.
Maximu Torque is 1.0[Nm], Maximum Speed is 150[rpm].
USR60-S3N is the Single shaft Motor, User can save the space of Motor.
USR60-S4N is the Double shaft Motor. User can attach the sensor to USR60-S4N.Click here for catalog and manuals
Click here for Drawing and CAD dataSelectable Driver
Specification
| Model Name | USR60-S3N | USR60-S4N |
| Drive Frequency | 40 [KHz] 〜 45 [KHz] | |
| Drive Voltage | 130 [Vrms] | |
| Rated Output | 5.0 [W] | |
| Maximum Output | 10.0 [W] (by Maximum Load) | |
| Rated Speed | 100 [rpm] | |
| Maximum Speed | 150 [rpm] | |
| Rated Torque | 0.5 [N･m] (5.0 [Kg･cm]) | |
| Maximum Torque | 1.0 [N･m] (10.0 [Kg･cm]) | |
| Holding Torque | 1.0 [N･m] (10.0 [Kg･cm]) | |
| Response | Less than 1 [ms] ( No-load ) | |
| Direction of Rotation | CW, CCW | |
| Operational Temperature Range | -10 [℃] 〜 +55 [℃] | |
| Temperature Limit | Surface of Stator 70 [℃], Surface of Case 60 [℃] | |
| Operational Humidity Range | 0 〜 +45 [%] (without condensation) | |
| Size | 67×77×47.5 [mm] | 67×77×60 [mm] |
| Weight | 250 [g] | 254 [g] |
| Remarks | Single Shaft | Double Shaft |
Non-Magnetic Model: Attached Encoder Type
USR30-EN
Model Name:USR30-E3N, USR30-E3NT
USR30-E3NT
-
USR30-EN series is Non-Magnet Model of the Small Ultrasonic Motor which mounted the incremental encoder.
Maximu Torque is 0.1[Nm], Maximum Speed is 250[rpm].
Resolution of encoder is 2 type.
USR30-E3N is mounted with 500 [P/R] encoder.
USR30-E3NT is mounted with 1,000 [P/R] encoder.Click here for catalog and manuals
Click here for Drawing and CAD dataSelectable Driver
Specification
| Model Name | USR30-E3N | USR30-E3NT |
| Drive Frequency | 49 [KHz] 〜 55 [KHz] | |
| Drive Voltage | 110 [Vrms] | |
| Rated Output | 1.0 [W] | |
| Maximum Output | 2.0 [W] (by Maximum Load) | |
| Rated Speed | 200 [rpm] | |
| Maximum Speed | 250 [rpm] | |
| Rated Torque | 0.05 [N･m] (0.5 [Kg･cm]) | |
| Maximum Torque | 0.1 [N･m] (1.0 [Kg･cm]) | |
| Holding Torque | 0.1 [N･m] (1.0 [Kg･cm]) | |
| Response | Less than 1 [ms] ( No-load ) | |
| Direction of Rotation | CW, CCW | |
| Operational Temperature Range | -10 [℃] 〜 +55 [℃] | |
| Temperature Limit | Surface of Stator 70 [℃], Surface of Case 60 [℃] | |
| Operational Humidity Range | 0 〜 +45 [%] (without condensation) | |
| Size | 36×50×48 [mm] | 36×50×48 [mm] |
| Weight | 69 [g] | 69 [g] |
| Remarks | Single Shaft | Double Shaft |
USR60-EN
Model Name:USR60-E3N, USR60-E3NT
USR60-E3NT
-
USR60-EN series is Non-Magnet Model of the Ultrasonic Motor which mounted the incremental encoder.
Maximu Torque is 1.0[Nm], Maximum Speed is 150[rpm].
Resolution of encoder is 2 type.
USR60-E3N is mounted with 500 [P/R] encoder.
USR60-E3NT is mounted with 1,000 [P/R] encoder.Click here for catalog and manuals
Click here for Drawing and CAD dataSelectable Driver
Specification
| Model Name | USR60-E3N | USR60-E3NT |
| Drive Frequency | 40 [KHz] 〜 45 [KHz] | |
| Drive Voltage | 130 [Vrms] | |
| Rated Output | 5.0 [W] | |
| Maximum Output | 10.0 [W] (by Maximum Load) | |
| Rated Speed | 100 [rpm] | |
| Maximum Speed | 150 [rpm] | |
| Rated Torque | 0.5 [N･m] (5.0 [Kg･cm]) | |
| Maximum Torque | 1.0 [N･m] (10.0 [Kg･cm]) | |
| Holding Torque | 1.0 [N･m] (10.0 [Kg･cm]) | |
| Response | Less than 1 [ms] ( No-load ) | |
| Direction of Rotation | CW, CCW | |
| Operational Temperature Range | -10 [℃] 〜 +55 [℃] | |
| Temperature Limit | Surface of Stator 70 [℃], Surface of Case 60 [℃] | |
| Operational Humidity Range | 0 〜 +45 [%] (without condensation) | |
| Size | 67×77×66 [mm] | 67×77×66 [mm] |
| Weight | 272 [g] | 272 [g] |
| Resolution of Encoder | 500 [p/r] | 1,000 [p/r] |
